Plage de pression de
0 à 4 Bar ABS

feature icon

Plage de température de
-270 à +1.820 °C

feature icon

52 entrées individuelles

feature icon

Les thermocouples traçables et interchangeables

Card image cap

E-Val™ Pro Plus

Wired Thermocouple System

The E-Val Pro thermocouple system for thermal validation is immensely easy to handle within controlled environments due to its compact size and light weight. The thermocouple system complies with FDA regulations as well and GAMP guidelines and is designed to be the ideal solution for any thermal validation process.

The secure and password protected module can handle up to 40 thermocouples and the large internal memory is capable of holding up to 10 studies at a time. The wired thermocouple system has a built-in 8-hour battery and can be used as a stand-alone unit or be connected to a PC via LAN/USB.

The E-Val Pro is equipped with interchangeable sensor arrays, which can easily be removed for service and calibration. With 4 and 12-channel arrays available, the E-Val Pro can handle all thermocouple types as well as analog and digital inputs.

Sensor Options

product image
STC22-TF Type T
Voir le produit
product image
STC32-TF Type T
Voir le produit
product image
STC-KT 3 Strand Type T
Voir le produit
product image
STC-KT 7 Strand Type T
Voir le produit
product image
SSU-CM Type T
Voir le produit
product image
STC-AC Type T
Voir le produit
product image
SSA-TS Type T
Voir le produit
product image
SSA-TF Type T
Voir le produit
product image
SSV Type T
Voir le produit
product image
SSS Type T
Voir le produit
product image
SSR Type T
Voir le produit
product image
SD4 Type T
Voir le produit
product image
Sensor Interface for Additional Measuring Parameters
Voir le produit

Key Features and Benefits

checkmark

Light and compact module

checkmark

Individual cold junction compensation

checkmark

Easy to handle and transfer from study to study

checkmark

Up to 40 sensors per module

checkmark

USB connectors

checkmark

Graphical Interface and touch display

checkmark

Password protected module

checkmark

Clean room suitable due to no fan

checkmark

Stand-alone function

E-Val Pro

Operating Range:

5 °C to 50 °C

Environmental:

0 – 90% RH, non-condensing

Sample Rate:

1 Second to 24 Hours

Weight:

3.0 kg (including battery and 40 channels)

Electrical Protection Class:

IP40

Power Consumption:

Less than 9 Watts (40 temperature sensors)

Memory:

40 channels 1 second sample rate in 8 hours for 10 sessions

Number of Channels:

40 channels

Time:

Time Accuracy:

± 1 Second per 24 Hours

E-Val Pro

Temperature:

Measuring Range:

-200 to +1,300 °C (ready for -270 °C to +1,820 °C) depending on sensor type

Measuring Range (Type T):

-200 to +400 °C

Measuring Accuracy at an ambient temperature of 23 °C:

± 0.05 °C between -100 and +400 °C / ± 0.1 °C between -200 and <-100 °C

Total System Accuracy at an ambient temperature of 23 °C:

± 0.10 °C between -50 and +150 °C (type T)

Resolution:

0.01 °C

Pressure:

Measuring Range:

0 to 4 Bar ABS

Measuring Accuracy:

± 0.15% FS

Resolution:

1 mBar

Other Parameters:

Measuring Range:

4-20mA or 0-10V

The ValSuite® Software

ValSuite is the industry leading validation and calibration software, which is highly attributed to the countless reporting options, impenetrable data integrity, user-calibration options and data analysis features.

The software is used to run all Ellab hardware and can combine various measuring systems to the same study. In addition to its wide range of features, ValSuite is also FDA 21 CFR Part 11 compliant and designed in accordance with GAMP guidelines.

Features and Benefits:
✓
FDA 21 CFR Part 11 compliant
✓ ​Safe and reliable
✓ Windows security option
✓ Compatible with Windows 10
✓ Available in several languages
✓ Suitable for all sorts of applications
✓ Multiple reporting options

And much more…

Highlighted Features

checkmark One software platform for all Ellab equipment
checkmark Combine TrackSense data loggers and the E-Val Pro wired thermocouple system in the same session
checkmark Automatic PDF report generation with clear pass/fail indication
checkmark Can run from a stand-alone PC or networked
Learn more about the software
software image

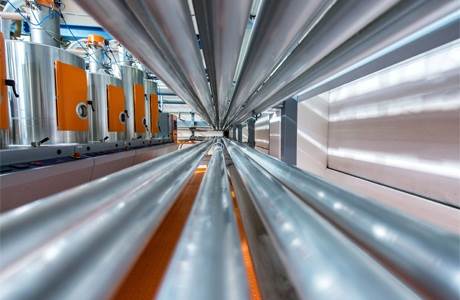

Suitable Applications

The wired thermocouple system can be used for various applications within the life science and food and beverage industries. When used with our E-Val Pro system, the following application(s) is covered:

Ellab Applications

Ellab provides a wide range of diverse products and solutions for the pharmaceutical, medical and food industries all around the world.

See all applications

Suitable Accesories

Ellab offers a wide range of customizable fittings and essential accessories for processes and studies within different industries. By using one of our unique fittings, loggers can be applied to hard-to-reach areas, cold spots and other critical measuring points.

Ellab Accesories

Ellab offers a wide range of customizable fittings and essential accessories for processes and studies within different industries.

See all Accesories
