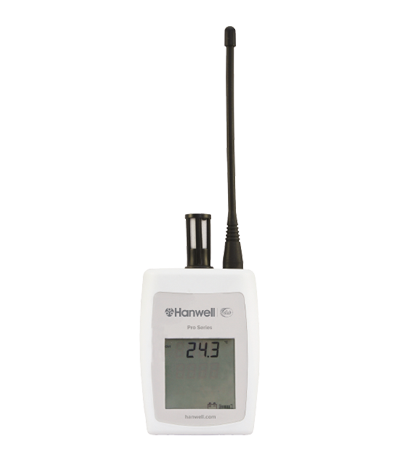

Hanwell Pro RL4007 Wireless Transmitter

Single Channel Thermistor Sensor

The Hanwell Pro unit is a single channel wireless temperature transmitter with LCD display and fitted internal temperature sensors. The frequency is 434.075MHz, but other frequencies are available upon request.

Temperature range -20°C to +60°C.

Typical Applications
• Dry storage
• Ambient room conditions



Relevant Products

product image
Dual channel thermistor & door sensors
View product
product image
Smart Receiver
View product
product image
Signal receiver & processer
View product
product image
Repeats another 3km (over open ground)
View product
product image
Y125 Wall Mounting Bracket
View product

Key Features and Benefits

checkmark

Single Channel temperature instrument

checkmark

LCD display with data readings & battery life

checkmark

Superior performance hardware & high accuracy sensors

checkmark

Easily accessible battery & USB socket

checkmark

Low power radio for long distance transmission (*3km over open ground)

checkmark

Carries CE Marking

Instrument Specifications:

Dimension (Excl. ancillaries):

110 x 80 x 35mm

Weight:

200 grams

Power supply:

3.6V AA Lithium battery

Battery life:

Up to 2 years (dependent on conditions of use and instrument settings)

Case material:

ABS & PC

Memory capacity:

100,000 readings. Unit will wrap when full.

Clock accuracy (logging):

20 ppm at 25°C

Instrument measuring range:

-20°C to +60°C

Instrument operating range:

-20°C to +60°C (non-condensing RH environment)

Instrument storage temperature:

-40°C to +60°C

IP Rating:

IP30

Unit accuracy:

+/- 0.1°C

Resolution:

0.1°C

Radio Transmitter functions

Frequency options:

A range of frequencies are available between 433-458MHz. Country specific regulations apply.

Radio power:

10mW

Radio range:

3km over open ground

Software required:

W900 – Standard EMS Software Package W906 – Validated EMS Software Package *See EMS datasheet for further options

Hardware required:

CR2 / CR3 – Controller, SR2 – Smart Receiver, REP – Repeater

The Hanwell EMS Software

The Hanwell environmental monitoring software (EMS) can be used with Hanwell Pro and Hanwell IceSpy hardware to provide a secure and flexible tool for comprehensive data collection, analysis and immediate alarm notification.

Validatable software
Specifically for the pharmaceutical sectors, we provide comprehensive IQ and OQ protocols and custom protocols, where required. Trained engineers and distributors are available for smooth validation protocol execution.

EMS assists with national regulatory compliance requirements
GxP Guidelines, HACCP, FDA 21 CFR Part 11, EU GMP Annex 11, and ISO 22000 food standards

Highlighted Features

checkmark One software platform for all Hanwell equipment
checkmark Single or multi-user access for small, medium or large monitoring needs.
checkmark Collect and display data from multiple environmental applications.
checkmark Display quick overview of sites and/or sensor groups specified by individual users.
checkmark Access interactive graphs, tables and plan views for detailed data analysis.
checkmark System validation to organisation requirements with full supporting IQ & OQ protocols.
checkmark View real-time data 24/7.
checkmark Immediate system, email and SMS alarm notification to user-defined personnel.
checkmark Generate automated reports or access data immediately and easily via the system.
checkmark Access critical information on your local PC, via the company intranet or network and via the internet.
checkmark View and interact with data and settings from anywhere in the world using commercially available browser based formats.
