The wireless data loggers can be used for various applications within the life science, medical and food & beverage industries.
When used with our High Range Conductivity and Temperature Sensor, the following application(s) are covered:
Temperature Range of -40°C to +80°C
Live data up to 3km*
Humidity Range of 0-100%RH

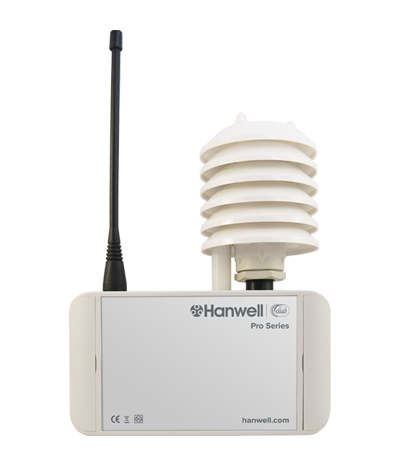

Hanwell Pro RL4109 Wireless Transmitter
Outdoor RH/T sensors
The outdoor Hanwell Pro RH/T wireless transmitter is fitted with onboard sensors and optional remote surface temperature sensor.
Temperature ranges between -40°C to +60°C. (Sensors sold separately)
Typical Applications
• Outdoor comparative data
Related Products
Key Features and Benefits
Combined temperature and humidity measurement
50,000 data readings per channel & up to 2 years battery life
Superior performance hardware & high accuracy sensors
Easily accessible battery & USB socket
Low power radio for long distance transmission (*3km over open ground)
Carries CE Marking
Instrument Specifications:
Dimension (Excl. ancillaries):
150 x 88 x 50mm
Weight:
485 grams
Power supply:
1 x 3.6V AA Lithium battery
Case material:
ABS & PC
Memory capacity:
50,000 readings per channel. Unit will
wrap when full.
Clock accuracy (logging):
20 ppm at 25°C
Instrument operating range:
-20°C to +60°C (non-condensing RH environment)
Instrument storage temperature:
-40°C to +60°C
IP Rating:
IP65
Radio Transmitter functions
Frequency options:
A range of frequencies are available between 433-458MHz. Country specific regulations apply.
Radio power:
10mW
Radio range:
3km over open ground
Software required:
W900 – Standard EMS Software Package W906 – Validated EMS Software Package *See EMS datasheet for further options
Hardware required:
CR2 / CR3 – Controller, SR2 – Smart Receiver, REP – Repeater
The Hanwell EMS Software
The Hanwell environmental monitoring software (EMS) can be used with Hanwell Pro and Hanwell IceSpy hardware to provide a secure and flexible tool for comprehensive data collection, analysis and immediate alarm notification.
Validatable software
Specifically for the pharmaceutical sectors, we provide comprehensive IQ and OQ protocols and custom protocols, where required. Trained engineers and distributors are available for smooth validation protocol execution.
EMS assists with national regulatory compliance requirements
GxP Guidelines, HACCP, FDA 21 CFR Part 11, EU GMP Annex 11, and ISO 22000 food standards
Highlighted Features
One software platform for all Hanwell equipment
Single or multi-user access for small, medium or large monitoring needs.
Collect and display data from multiple environmental applications.
Display quick overview of sites and/or sensor groups specified by individual users.
Access interactive graphs, tables and plan views for detailed data analysis.
System validation to organisation requirements with full supporting IQ & OQ protocols.
View real-time data 24/7.
Immediate system, email and SMS alarm notification to user-defined personnel.
Generate automated reports or access data immediately and easily via the system.
Access critical information on your local PC, via the company intranet or network and via the internet.
View and interact with data and settings from anywhere in the world using commercially available browser based formats.
Suitable Applications
Life Science
Warehouses
Warehouse environments in the pharmaceutical, medical, and food industries may be subject to regulatory compliance, requiring validation and monitoring.
Temperature and humidity are the most common critical parameters, which cannot exceed certain limit values and need to be accurately documented.
Life Science
Warehouses
Warehouse environments in the pharmaceutical, medical, and food industries may be subject to regulatory compliance, requiring validation and monitoring.
Temperature and humidity are the most common critical parameters, which cannot exceed certain limit values and need to be accurately documented.
Ellab Applications
Ellab provides a wide range of diverse products and solutions for most applications, all around the world.
See all applicationsSuitable Accessories
Ellab offers a wide range of customizable fittings and essential accessories for our products. The items below are for use with this product:
Wall mounting bracket
Steel wall bracket for use with Hanwell Pro wireless data loggers.
Screws not included.
Product Information
Dimensions: 8.8(L) x 3 (H) x 1.5 (D) cm
Weight: 22g
AA 3.6V Lithium Battery
Battery size: AA/T06/8AA1
Power: 3.6V
Pack Size: Pack of 10 AA Lithium Batteries
Ellab Accessories
Ellab offers a wide range of customizable fittings and essential accessories for processes and studies within different industries.
See all AccessoriesDownloads and Related Articles
Our EMS video to see how our comprehensive solutions work
